LASER PLAIN PAPER FACSIMILE SYSTEM

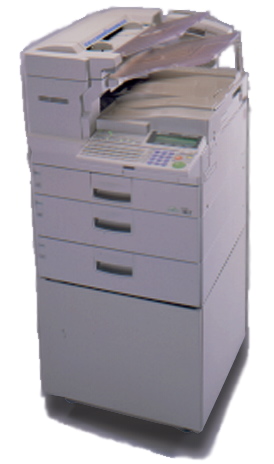

RICOH Aficio FAX5000L
1-800-GO-RICOH

The Ricoh Aficio Fax 5000L is a quality, high-end fax designed for the heavy volume environment. With the capability of three communication lines (G3 modem, ISDN & Internet) and superb paper handling capacity, you will see why Ricoh and FaxWorld are proud to bring you this tough and mighty system to handle your business quickly, easily and professionally.

The Ricoh Aficio 5000L with it's fast 33.6 Kbps modem is designed for high speed and high volume applications:

Super fast 15 page per minute print engineOptional second modem (33.6 Kbps) allows for simultaneous sending and receivingBoost paper capacity from 250 sheets to 1,250 sheetsFast 1.5 second per page scan timeAbility to both send and receive 11"X17" faxes at full sizeConvenient and easy to change All-in-one supply cartridge

• Large 75 page Automatic Document Feeder
• Ability to both send and receive 11"X17" faxes at full size
• Optional Second modem (33.6 Kbps) allows for simultaneous sending and receiving
• Boost paper capicty from 250 to 1,250
• Fast 1.5 second per page scan time
• Convenient and easy to change "all-in-one" supply cartridge

Transmission Features AI Protocol/Redial Function Set By Destination Auto Document Immediate Transmission Automatic/Manual Redial ITU-T Error Correction Mode Automatic Transmit Reduction Memory Transmission Batch transmission On-Hook Dial Backup File Transmission Page Retransmission Chain Dialing Parallel Memory Transmission Polling Transmission Priority Memory Transmission Closed Network Transmission Send Later Confidential Transmission Serial Broadcast Direct Fax Number Entry TTI/RTI/CSI Direct LableEntry Telephone Directory Duplex Document Transmission Transfer Request/Broadcast Economy Transmission Transmission Page Count Forwarding Well Log Transmission		Specifications Type: High Volume Fax Recording Method: Laser Plain Paper ITU-T Compatibility: Group 3 (v.34) Group 4 (Optional) Modem Speed: 33.6 Kbps: with auto fallback Maximum Transmision Speed: 3 seconds** (G4-1.5 seconds) Data Compression: MH/MR/MMR/JBIG (optional) Scan Speed (Standard Resolution): 1.5 Seconds* Dual Access: Yes Standard Document Memory: 2 MB (160 Pages*) Optional Document Memory: 2 MB (160 Pages*) 4 MB (320 Pages*) 40MB HardDrive (1,200 Pages*) Auto Dialer: 64 Quick Dials; 100 SpeedDials; 9 Groups Document Memory Backup: 1 Hour ADF Capacity: 75 Sheets Maximum Doc/Scan Width 11.9"/11.6" Scan Resolutions: 200X100/200/400 Lines/Inch (Standard/Detail/Fine) Maximum Print Speed: 15 Pages per Minute Print Resolution: 600 dpi Maximum Recording Width: 11.5" Resolution Enhancement: Super Smoothing HQ Halftone: 64 Shades of Gray Max. Recording Paper Size: 11"X17" (ledger) Recording Paper Capacity 250 sheets (Additional 2 X 500 sheet tray option ) LCD Display Size 4 Lines (40 characters) Power Consumption   Energy Saver Mode: Less than 2 Watts   Maximum: 900 Watts Power Requirements: User115V, 60Hz Dimensions (WxDxH) 20"x24"x18" (Excluding trays and options) Weight: 59 LBS.
Reception Features 2 in 1 Reception Electronic Sorting Authorized Reception Multi-Polling Reception Automatic/Manual Reception Multi-Sort Document Reception Automatic Image Rotation Page Count Center Mark Poll Later Checkered Mark Polling Reception Closed Network Reception Reception Time Printing Confidential Reception Substitute Reception Transfer Continuous Polling Request
General Features Automatic Service Call Monitor Speaker Closed Network Personal Codes Copy Mode (up to 99 copies) Power Saving Timer Copy Prohibition Print Density Control Dual Access Remaining Memory Indicator Energy Saver Mode Restricted Access Keystroke Programs Summer Time/DST Setting Label Registration for Quick/Speed Dials Wild Cards Marker (ADF Verification Stamp) Memory Lock
Options ISDN Digital Interface Type 500 Network Printer Interface JBIG Unit Type 500 2nd Telephone Line option (Simultaneous send & receive) 2MB Memory Upgrade (additional 160 pages*) 4MB Memory Upgrade (additional 320 pages*) 40MB Hard Drive Memory Upgrade (additional 1,200 pages*) Paper Feed Unit Type 180 (500 Sheets letter/legal) up to two can be added Mechanical Counter Handset Type 100		Printer Specifications Resolution: PCL 6/PCL 5e-600/300 dpi Print Speed: 15 ppm* Interface: IEEE 1284 Parallel CPU: 166 MHz RISC Network Protocol: TCP/IP, IPX/SPX, Net BEUI Network Interface: Ethernet 10/100BaseT; RJ-45 Connector Network Operating Systems: Novell NetWare 3.x, 4.x, Intranetware, Windows 95/98/NT 4.0 RAM Memory Capacity: Up to 80 MB SDRAM PDL: Standard PCL 6/PCL 5e Print Drivers: Windows 3.x/95/98/NT 4.0
Internet Fax Specifications Network/Connection: LAN; 10/100 BaseT Internet Protocols: SMTP, TCP/IP, POP3, RFC2305, T.37 E-Mail Format: Single/multipart MIME Conversion Attached File Format: TIFF-F (MH Compression), DCX Document Size: Letter (larger Documents will be reduced to letter size) Transmission speed: 100 Mbps maximum Software Components IC Fax Viewer, NIC Fax Monitor, NIC Fax Com Redirector for Windows 95/98/NT 4.0		ISDN Digital Fax Specifications ISDN Standard: National ISDN-1 Line Requirements: ISDN Basic Rate Interface (BRI) ISDN Interface: S/T Interface, (RJ-45), (NT-1 required) Data Transmission Speed: 64Kbps ISDN Transmit Resolution : Standard-200X100dpi, Detail-200X200dpi, Fine-200X400dpi

*Based on ITU-T Test Chart #1 in standard resolution.
**Approximately 3 seconds per page at 33.6 Kbps is dependent on optimal line quality, and actual performace may vary by location. Current systems used by the Public Switched Telephone Network (PSTN) generally support 28.8Kbps modem speeds or lower.
	As an Energy Star Partner, Ricoh Corporation has determined that this product meets the Energy Star guidelines for energy efficiency. Specifications subject to change without notice.
